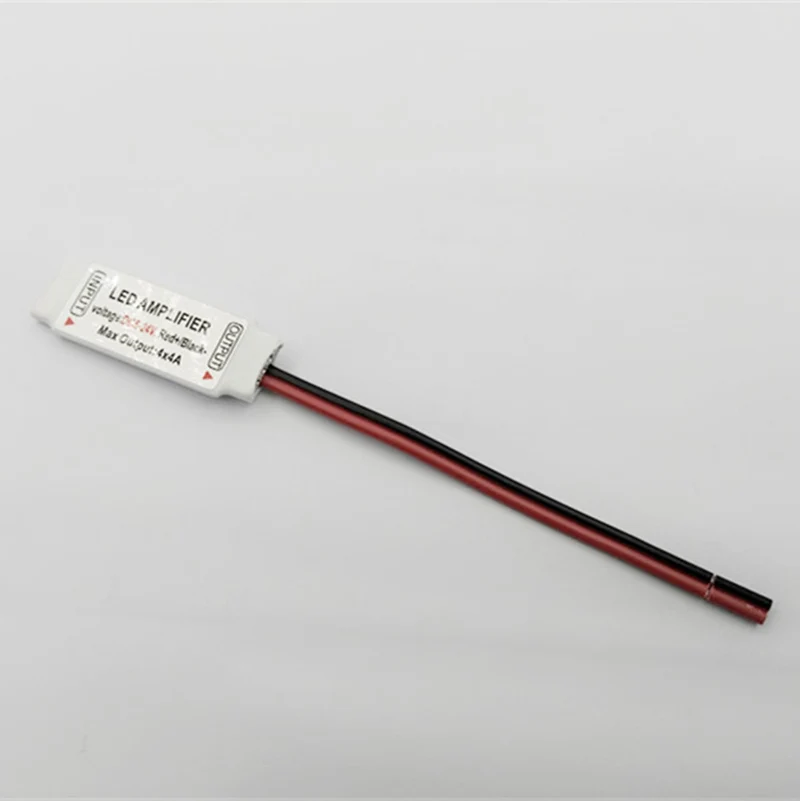

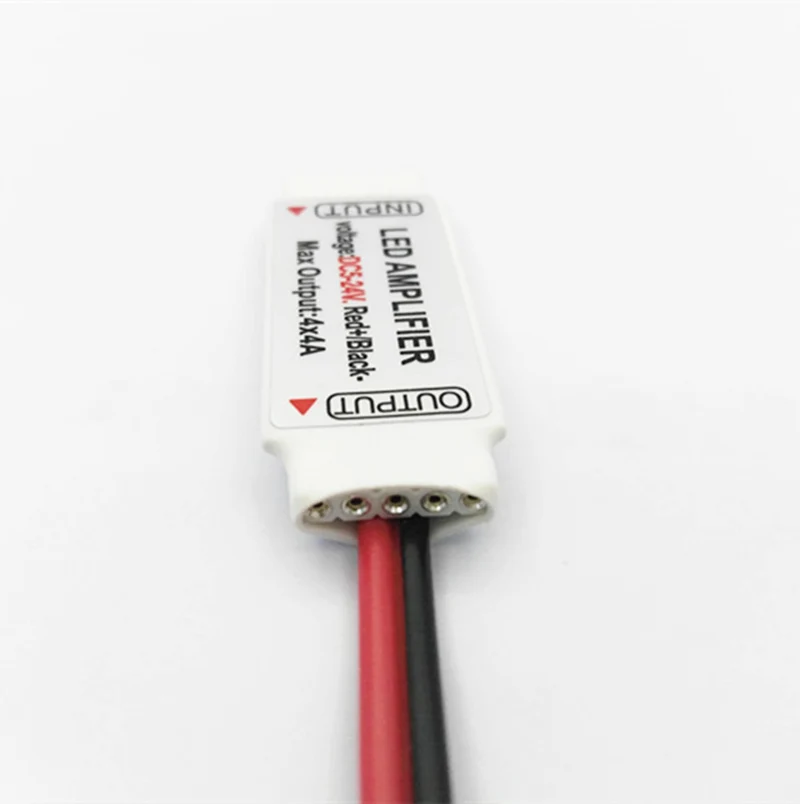

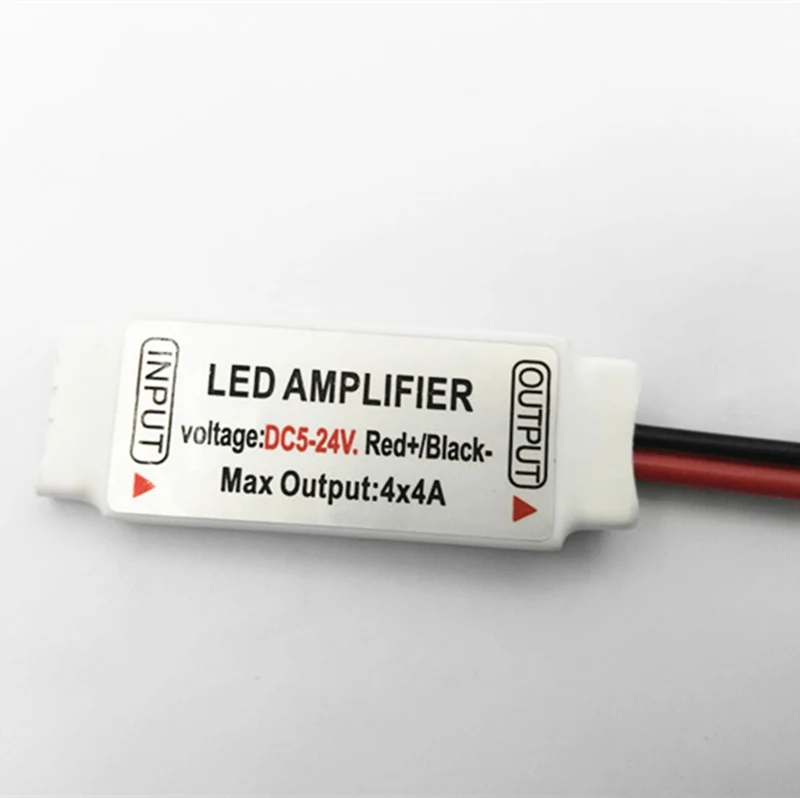

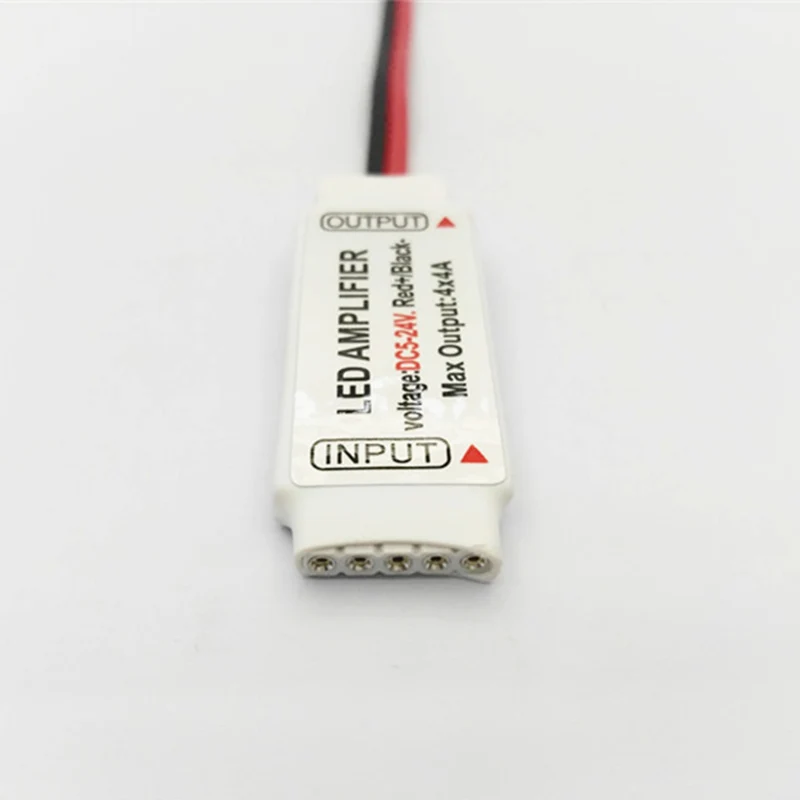

RGB / RGBW LED Strip Amplifier – DC12V-24V | Standard / Mini Options | 4-Channel RGBW | For LED Strips

0,92 €1,71 €46% OFF
Model Options: 12V RGB
Retours sous 30 joursGarantie 1 an
Livraison estimée: 7 octobre - 9 octobre.
0,92 €
Quantité
Moyens de paiement
Détails du produit

RGB / RGBW LED Strip Amplifier – DC12V-24V | Standard / Mini Options | 4-Channel RGBW | For LED Strips

Package Included

Model Options / Pack Size Package Included
12V RGB / 24V RGBW RGBWW – 1-Pack 1 × RGB/RGBW LED Strip Amplifier, 1 × User Manual

About this item

  • Wide Compatibility: Works with 12V or 24V RGB and RGBW/RGBWW LED strips or bars.
  • Signal Amplification: Used with controllers to extend and enlarge LED signals, ensuring consistent brightness across longer runs.
  • 4-Channel Output: Supports R/G/B/W channels with common anode connection, up to 4A per channel.
  • High Power Capacity: Handles up to 192W @12V or 384W @24V, ideal for larger lighting setups.
  • Compact & Lightweight: Mini size L35 × W10 × H8 mm, net weight only 15 g for easy installation in tight spaces.
  • Wiring Guidance: 5-Pin input connects to RGBW controller; 5-Pin output connects to RGBW LED strip; red/black wires connect to power supply positive and negative poles.

Order & Logistics

Lead Time

  • Ships directly from headquarters. Handling time 3–5 business days

Shipping Note

  • This series enjoys our Free Shipping Policy for orders over $399.
  • HQ Fulfillment (when local stock is unavailable): Standard 9–18 days  |  Express 5–9 days.
  • Packing: Cardboard box

Usage Notes / Installation Tips

  • Ensure LED strip voltage matches the controller input (DC5V–24V).
  • Do not exceed rated current load to prevent overheating or damage.
  • For Tuya APP version, connect controller to a 2.4GHz WiFi network during setup (5GHz not supported).
  • Install in a dry, ventilated area; avoid direct water exposure unless additional waterproofing is provided.
  • Disconnect power before wiring or making adjustments.

Applications

  • Residential ambient lighting (living rooms, bedrooms, kitchens)
  • Smart home RGB LED strip control with Tuya APP
  • Retail and commercial decorative lighting
  • Bars, cafes, restaurants, and entertainment venues
  • Holiday and festive lighting setups
