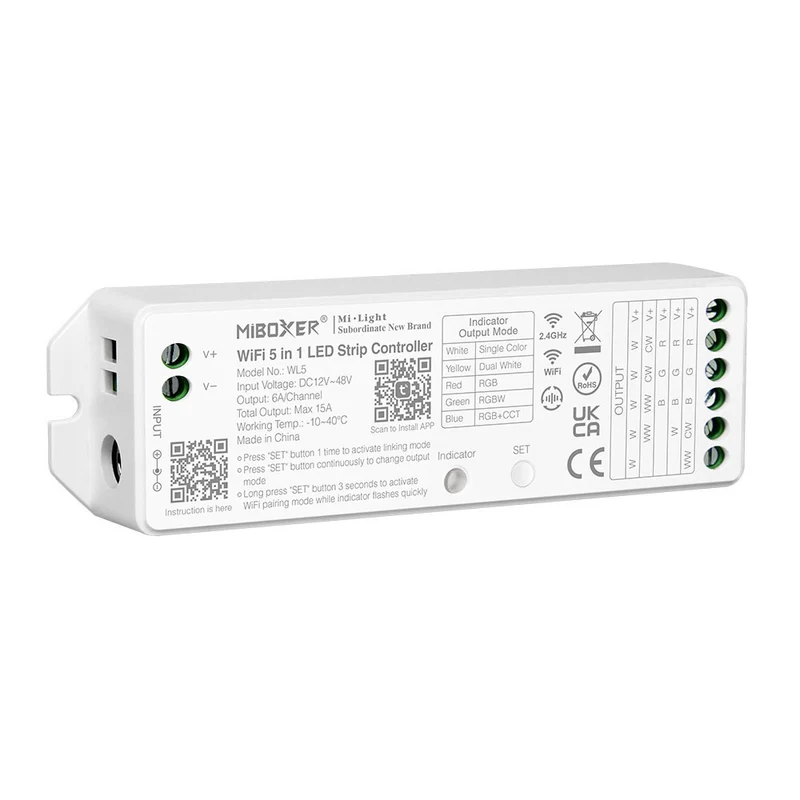

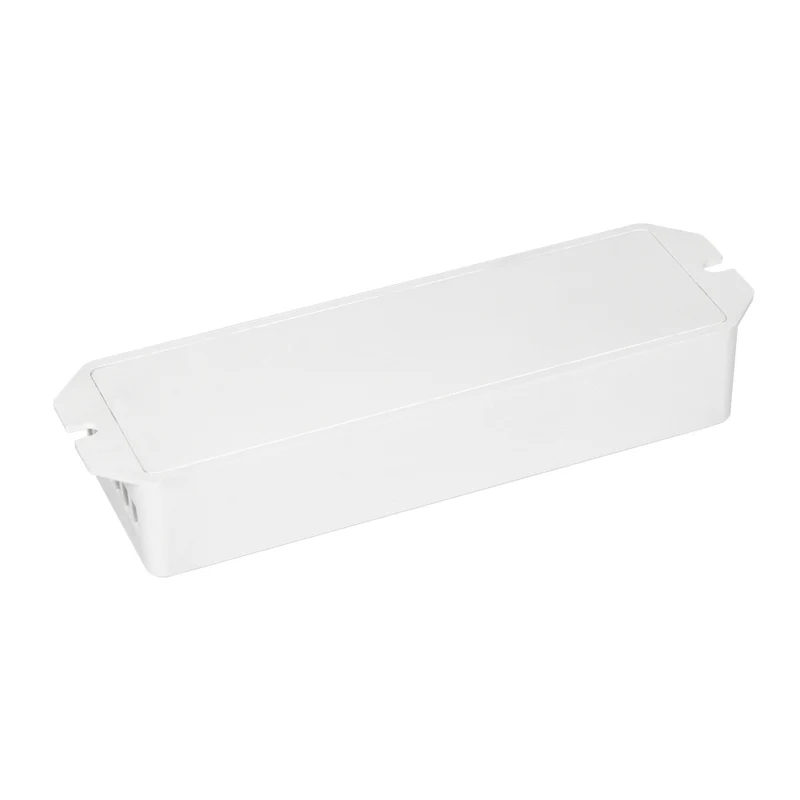

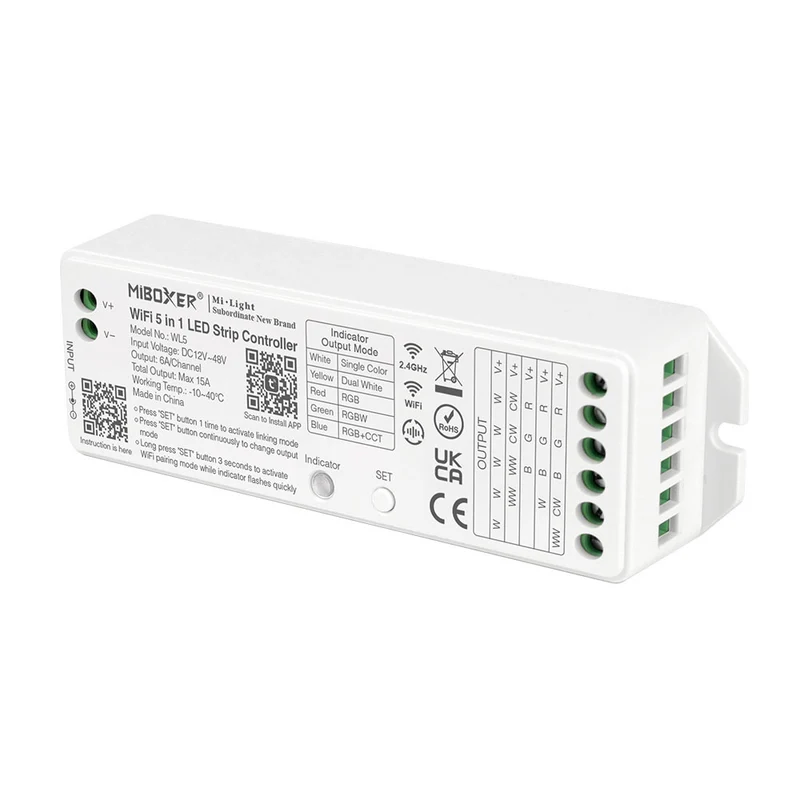

MiBOXER WL5 5 in 1 LED Strip Controller (WiFi+2.4G)LED Controller Series

MiBOXER WL5 5 in 1 LED Strip Controller (WiFi+2.4G)LED Controller Series

Package Included

Version	Package Included
WL5 (5 in 1, WiFi+2.4G)	1 × WL5 Controller, 1 × User Manual

About this item

• Support “Tuya Smart” app control
• Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• 16 Millions of colors to choose
• Color temperature adjustable
• Brightness and saturation controllable
• Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)

Order & Logistics

Lead Time

• Ships directly from headquarters. Handling time 3–5 business days

Shipping Note

• This series enjoys our Free Shipping Policy for orders over $399.
• HQ Fulfillment (when local stock is unavailable): Standard 9–18 days  |  Express 5–9 days.
• Packing: Cardboard box

Key Specifications

Product Name	5 in 1 LED Strip Controller (WiFi+2.4G)
Model No.	WL5
Input Voltage	DC12~48V
Output	6A/Channel
Total Output	Max 15A
Communication Protocol	WiFi+2.4GHz
2.4G RF Control Distance	30m
IP Rate	–
Working Temperature	-20~60°C
WiFi Standard	IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol	Bluetooth 4.2 (low power consumption)

Applications

• LED strip lighting projects requiring WiFi and RF dual control
• Smart home lighting with app and voice integration
• Color-changing ambient lighting with music synchronization
• Group-controlled LED installations in commercial or residential spaces
• DMX512-compatible RGB+CCT projects for professional lighting setups
