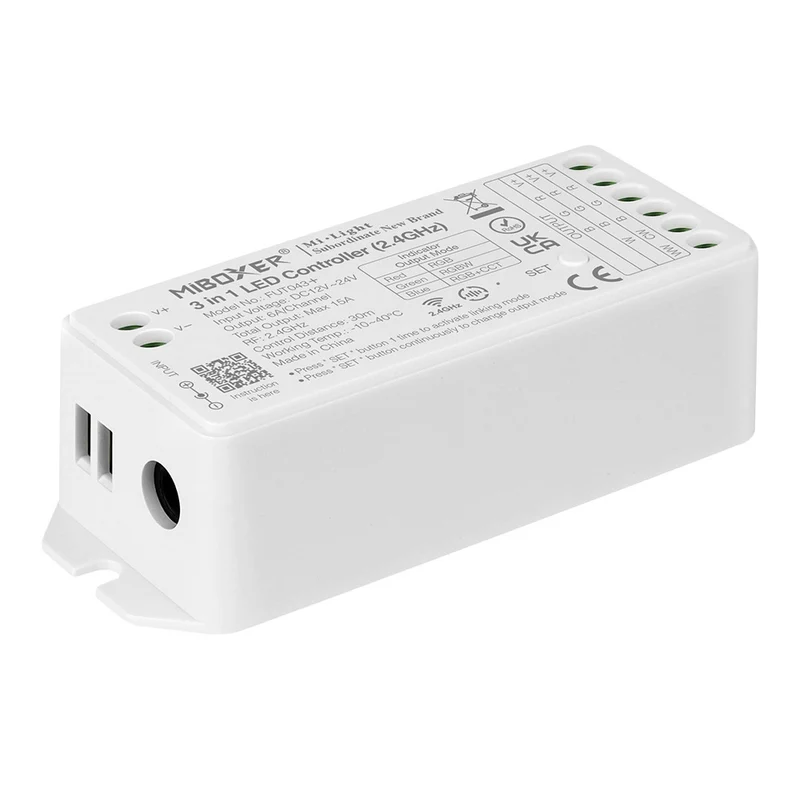

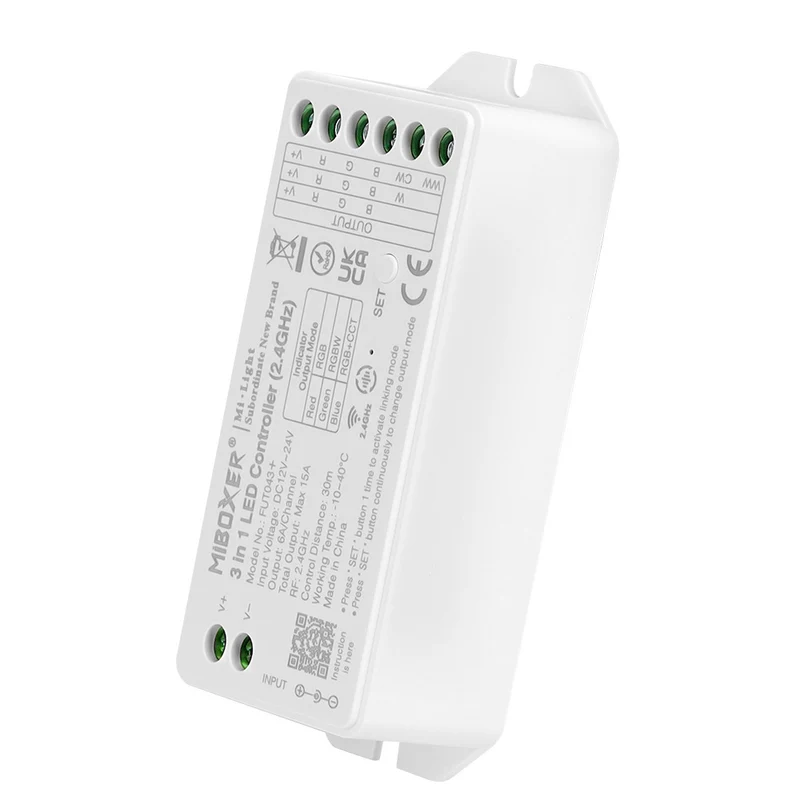

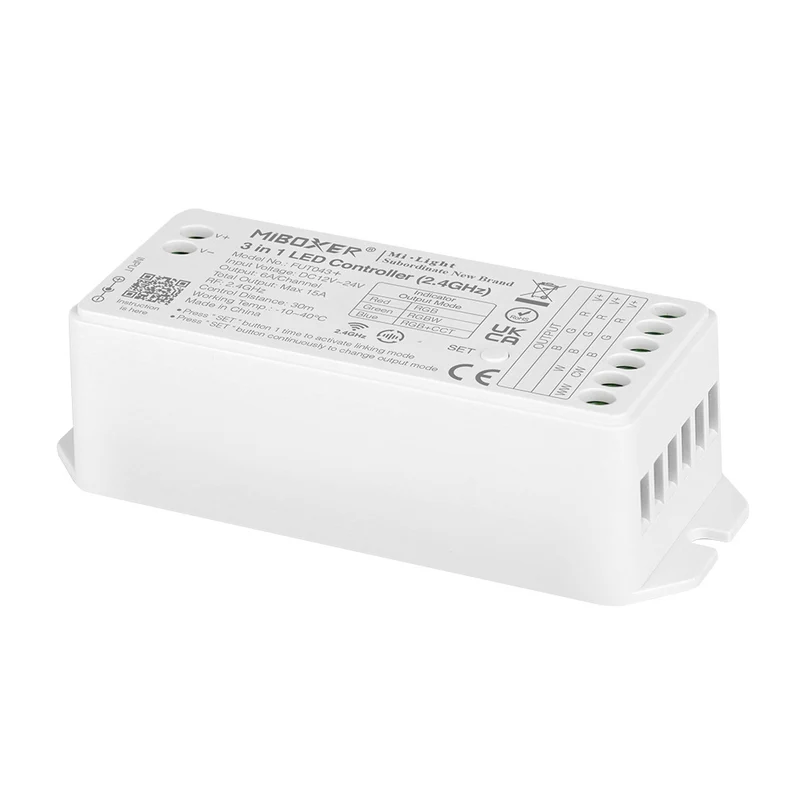

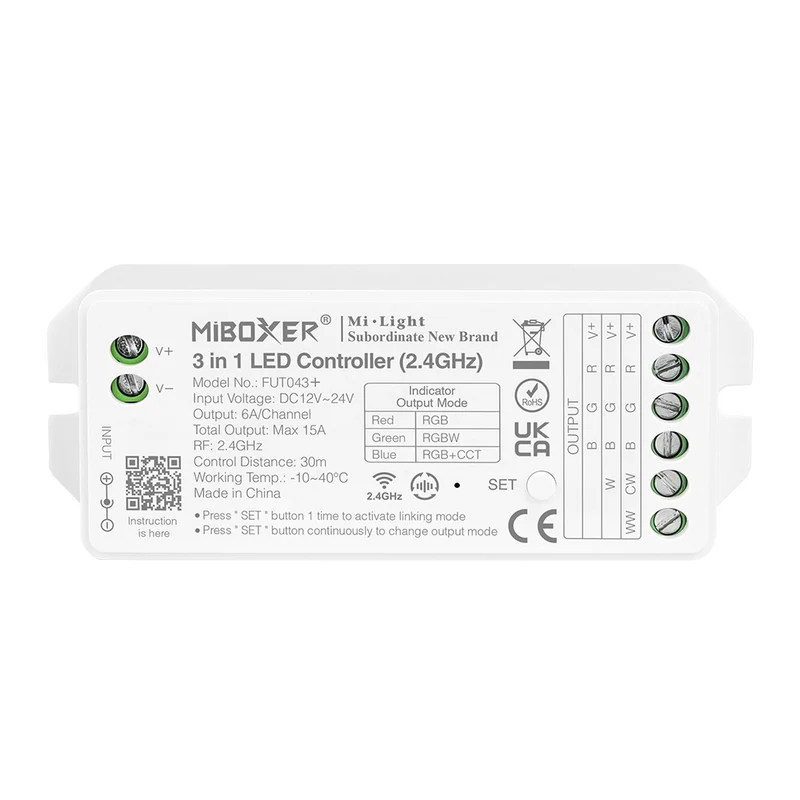

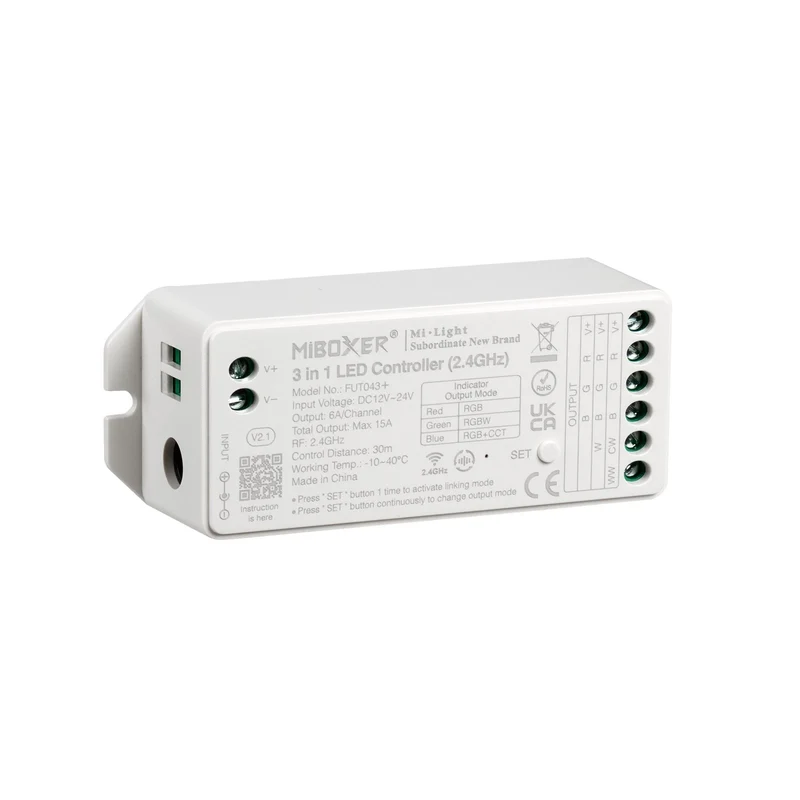

MiBOXER FUT043+ 3 in 1 LED Controller (2.4GHz)

FUT043+3 in 1 LED Controller (2.4GHz)

• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• Control Distance: 30m
• Brightness and color temperature adjustable
• Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)

Available Downloads:
Manual

3 in 1 LED Controller (2.4GHz)

One controller = triple function (RGB / RGBW / RGB+CCT) Decrease the model number of your stock, manage stock easily

Product Parameters

Product Name	3 in 1 LED Controller (2.4GHz)
Model No.	FUT043+
Input Voltage	DC12~24V
Output	6A/Channel
Total Output	Max 15A
RF	2.4GHz
Control Distance	30m
IP Rate	–
Working Temperature	-10~40°C
Output connection	Common anode

Switching 3 output mode via one button RGB \ RGBW \ RGB+CCT Multiple Functions, All-in-One Model
* 2.4GHz RF Remote control (Control distance 30m), the remote need to purchase separately * 16 Millions of colors to choose * Saturation adjustable, meet the diversified lighting * Color temperature adjustable * Brightness adjustable, smooth transition without flicker * Support Smartphone APP control, but need to use 2.4G Gateway, which also need to purchase separately.

Compatible with the following Remotes/Gateway/DMX512 Transmitter

FUT088	FUT092	FUT089	WL-Box2 (Gateway)	FUTD01

Signal transmitting

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Modes synchronization

Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.

PWM high frequency / low frequency

High frequency / low frequency can be switched

Support smartphone app control and third party voice control (It need 2.4GHz gateway)
