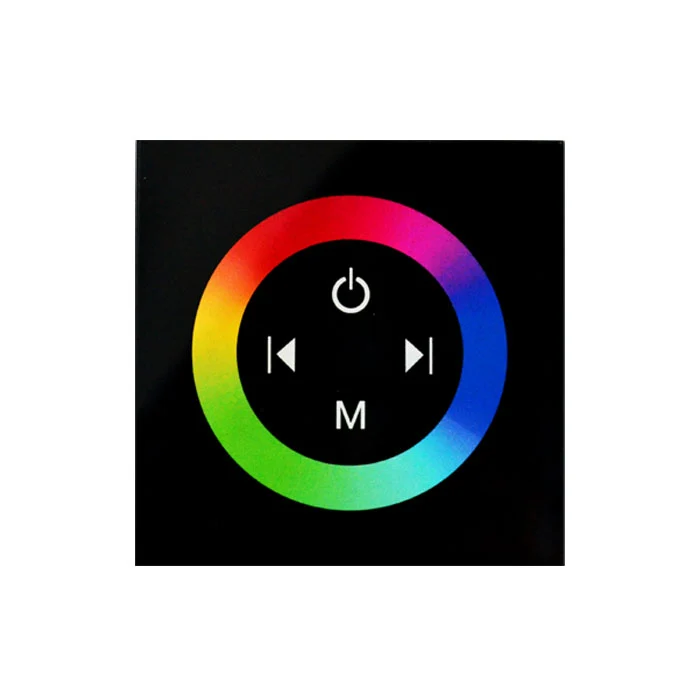

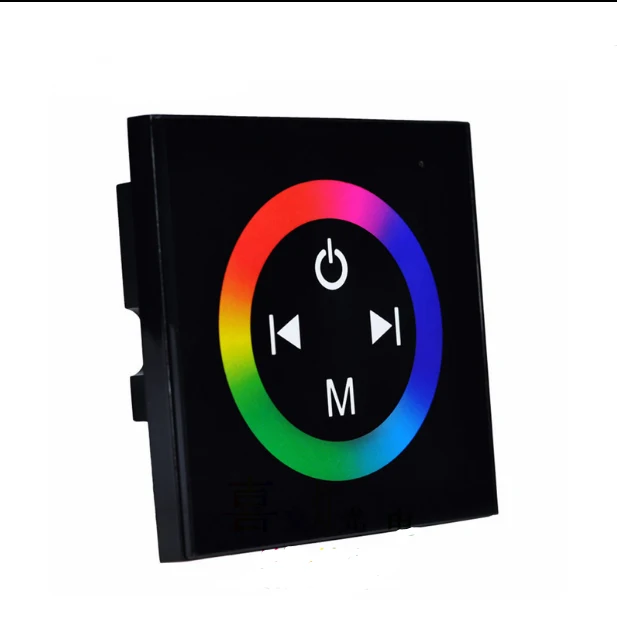

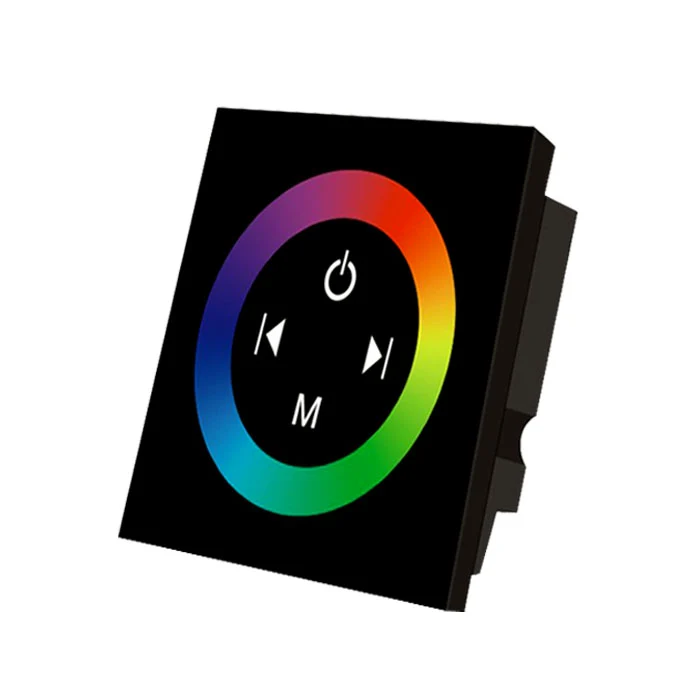

* Wall Touch Panel LED Controller

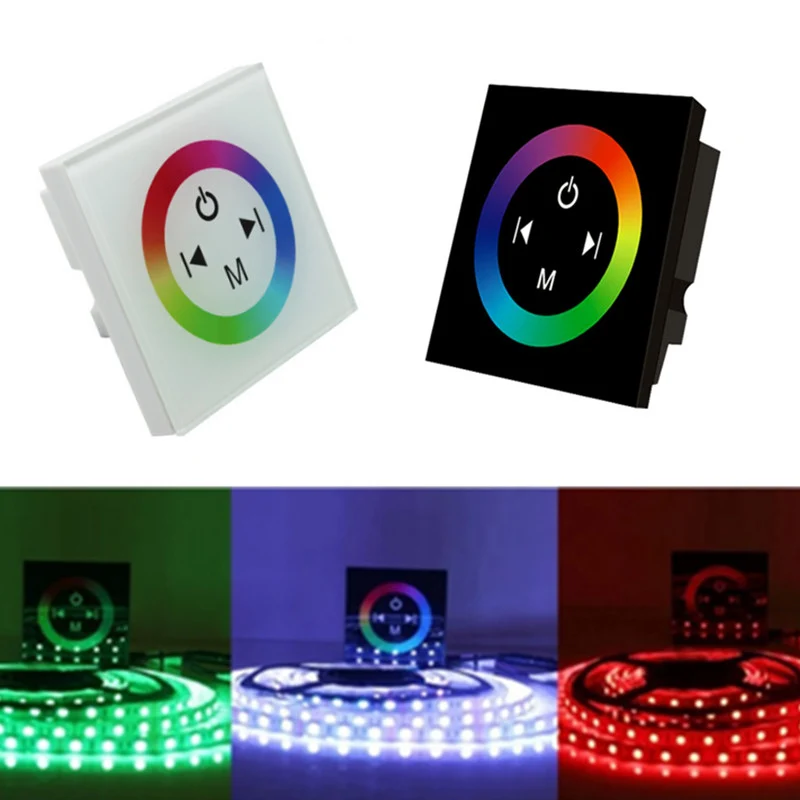

* Work for RGB color changing LED strip lights
* Input Voltage: 12V-24V DC
* Output current: <4A( each channel )
* Output power: 12V<144W,24V<288W

Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L115Χ W110 Χ H56 mm
● net weight: 128g
● gross weight: 187g
● static power consumption: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W

Function

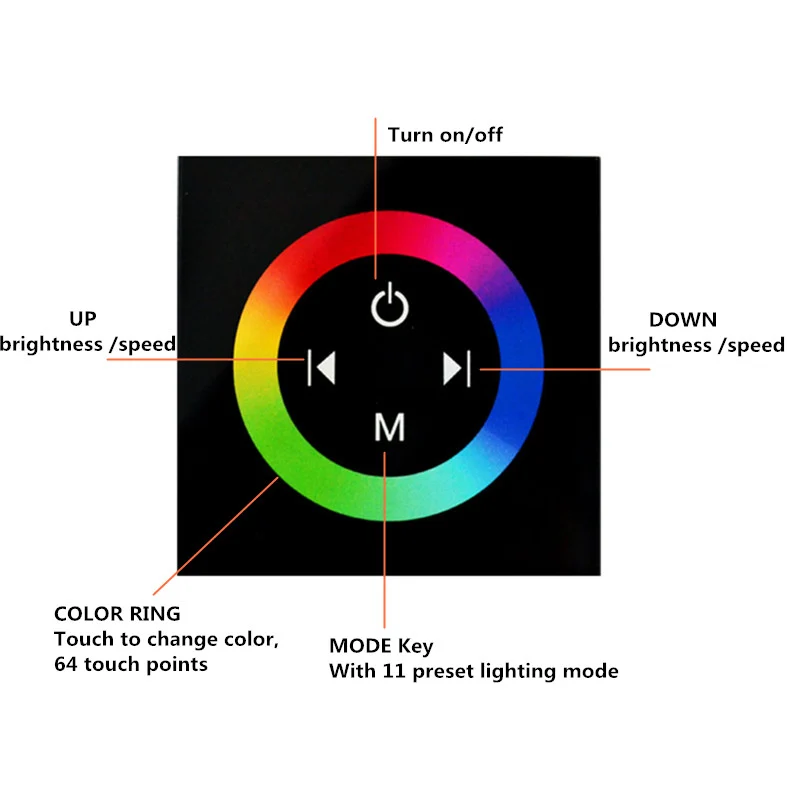

The 11 pre-set mode for M key.

#	Mode	Remark
1	Static Red	Brightness adjustable
2	Static Green
3	Static Blue
4	Static Yellow
5	Static Purple
6	Static Cyan
7	Static White
8	3color jump change	Speed adjustable, brightness un-adjustable
9	3color gradual change	Speed adjustable, brightness un-adjustable
10	7color jump change	Speed adjustable, brightness un-adjustable
11	7color gradual change	Speed adjustable, brightness un-adjustable

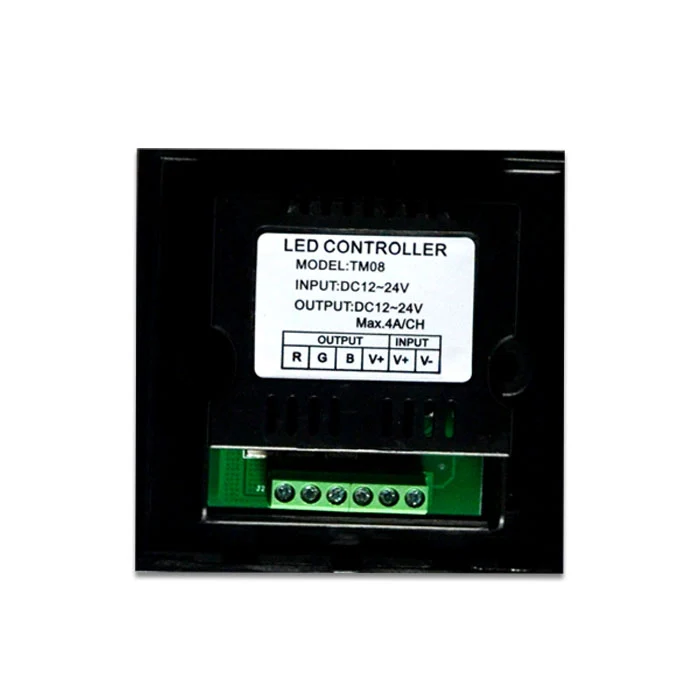

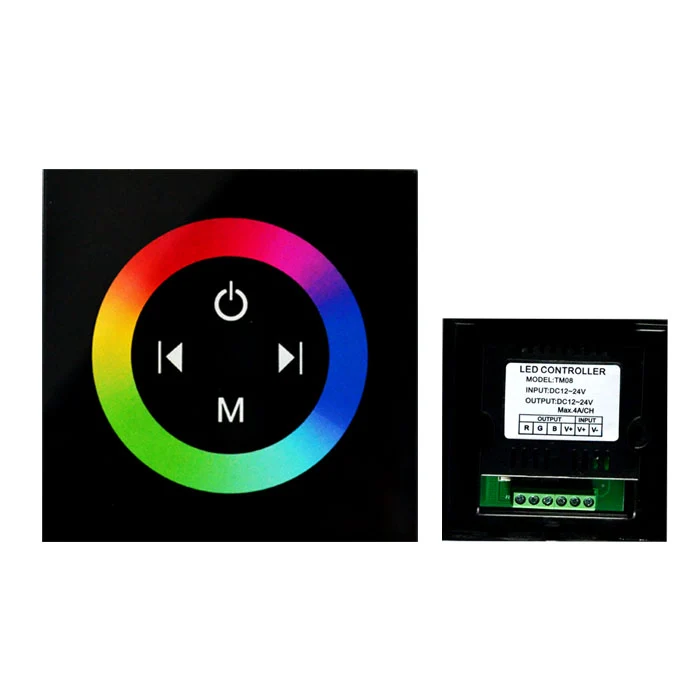

Wiring Reference

Installation Guide

1. Use tool to take apart the front panel and back base of the wall panel LED controller

2. Get the wires be connected well between the Back Base and the strips & power source

3. Recessed the Back Base into wall and fixed it by screws.

4. Finally press the Front Panel back into the Base Base.
